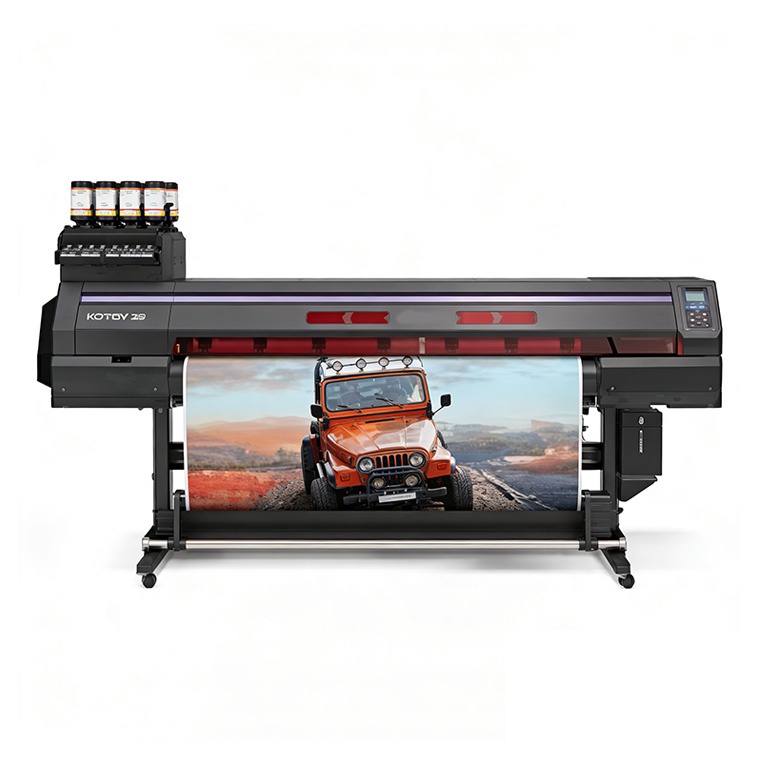

UCJV-300-160

UCJV-300-160
With the UV ink property of immediate curing upon UV light irradiation, no drying time is required. The post-processing and sign applying are possible instantly. Required time for production is saved to be possible to undertake even an order of tight scheduled work. It is immune from ink blocking while printing by multi layers or using white ink. There is no necessity to mind media stains nor to attend by operator.
REQUEST A QUOTE
SEND EMAIL

Customized to Your Needs, All-Round Coverage

We are dedicated to meeting your personalized printing needs.

From creative conception to finished product delivery, we offer a one-stop inkjet printing end-to-end solution, covering DTF printers, UV flatbed printers, UV roll-to-roll printers, Eco Solvent printers, UV DTF printers, paper printers, lettering machines, as well as matching consumables and dedicated accessories, fully adapting to diverse printing scenarios.

Product Overview

With the UV ink property of immediate curing upon UV light irradiation, no drying time is required. The post-processing and sign applying are possible instantly. Required time for production is saved to be possible to undertake even an order of tight scheduled work. It is immune from ink blocking while printing by multi layers or using white ink. There is no necessity to mind media stains nor to attend by operator.

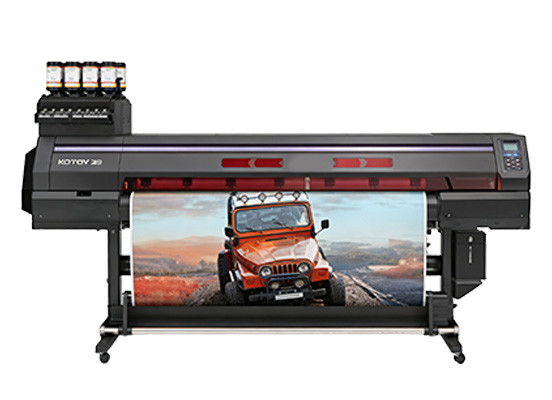

UCJV-300-160-7


Product Specifications

Print head

On-demand piezo head

Print resolution

300dpi, 600dpi, 900dpi, 1200dpi

Droplet size

Min. 7pl, Max. 28pl

Head gap

3 degrees adjustable (2.0/2.5/3.0mm) by manual

Ink Type

LED-UV ink/LUS-170/LUS-200

Ink Color

LUS-170(C,M,Y,K,Lc,Lm,W / C,M,Y,K,Cl,W / C,M,Y,K); LUS-200(C,M,Y,K,W / C,M,Y,K)

Ink Capacity

1L (Bottle supply)

Max. print width

1,610mm (63.4in)

Max. media width

1,620mm (63.8in)

Media thickness

1.0mm or less

Media roll outer diameter

250mm or less

Media roll weight

40kg (88.2 lb) or less

Cut speed

Max. 300mm/s (420mm/s in 45 degrees direction)

Cut pressure

10 - 450gf

Cutter types

Eccentric cutter, Blade for small character, Blade for reflective sheet, Blade for fluorescent sheet, Standard blade for vinyl

Interface

USB2.0 / Ethernet1000 BASE-T

Power supply

Single phase AC100 - 120/200-240V ± 10%, 50 / 60Hz ± 1Hz

Power consumption

AC100V : 1.44kW / AC200V : 1.92kW or less

Operational environment

Temperature : 20-30 degC / 68-86 degF, humidity : 35-65% Rh (No condensing)

Outside dimensions (W × D × H)

2,900 × 776 × 1,475mm

Weight

188Kg / 414.5lb


Product Features

With the UV ink property of immediate curing upon UV light irradiation, no drying time is required. The post-processing and sign applying are possible instantly. Required time for production is saved to be possible to undertake even an order of tight scheduled work. It is immune from ink blocking while printing by multi layers or using white ink. There is no necessity to mind media stains nor to attend by operator.
