JN-704+BL4-14

JN-704+BL4-14

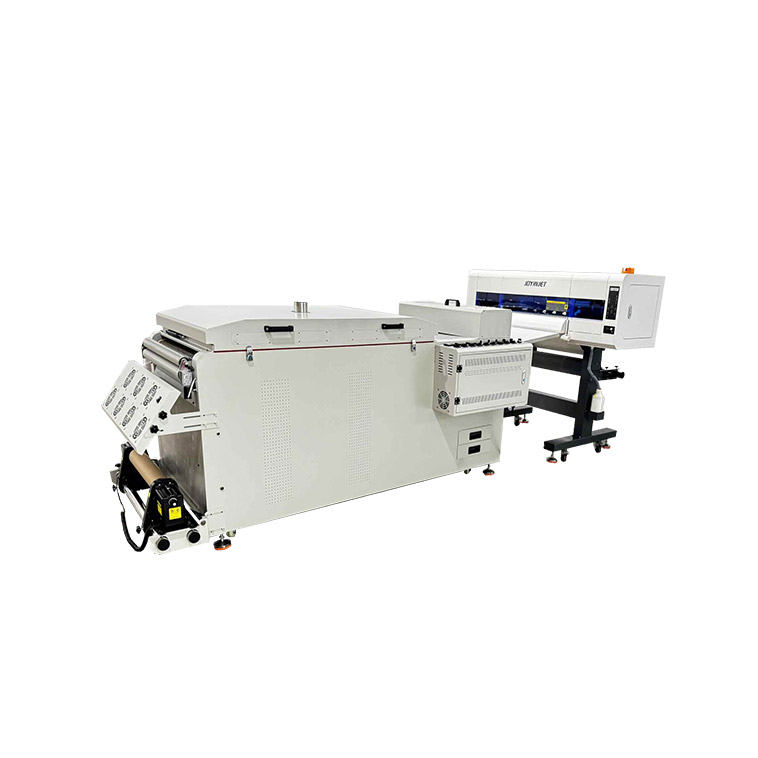

This A1 DTF printer, equipped with four EPSON i3200-A1 printheads, is a 600mm paper transfer printer suitable for small businesses, and can also be used for printing on T-shirts and other textiles. It includes a one-year warranty on core components, RIIN/Photoprint RIP software, five ink cartridges, and a 110V/1220V 50-60Hz 200W/2000W power supply.
REQUEST A QUOTE
SEND EMAIL

Customized to Your Needs, All-Round Coverage

We are dedicated to meeting your personalized printing needs.

From creative conception to finished product delivery, we offer a one-stop inkjet printing end-to-end solution, covering DTF printers, UV flatbed printers, UV roll-to-roll printers, Eco Solvent printers, UV DTF printers, paper printers, lettering machines, as well as matching consumables and dedicated accessories, fully adapting to diverse printing scenarios.

Product Overview

This A1 DTF printer, equipped with four EPSON i3200-A1 printheads, is a 600mm paper transfer printer suitable for small businesses, and can also be used for printing on T-shirts and other textiles. It includes a one-year warranty on core components, RIIN/Photoprint RIP software, five ink cartridges, and a 110V/1220V 50-60Hz 200W/2000W power supply. It boasts fast printing speeds, reaching 22 square meters per hour for four passes and 9 square meters per hour for eight passes. With its advanced technology, it delivers high-quality prints and reliable long-term performance.

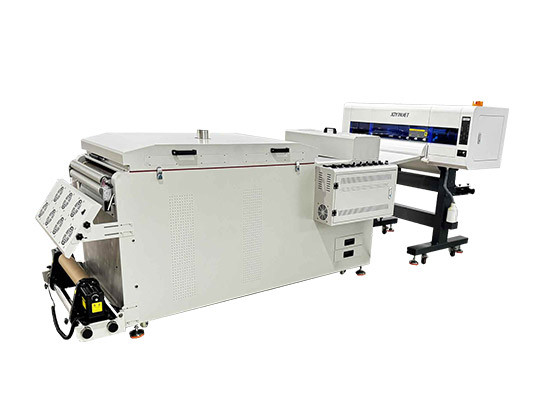

JN-704+BL4-14-2


Product Specifications

Product Name

JN-704+BL4-14

Print Head

4PC Epson I3200-A1

Printing Format

615mm

Max Media Width

700mm

Printing Accuracy

3200 DPI

Printing Speed

4 pass 720*1200 DPI 22m²/h,

6 pass 720*1800 DPI 14m²/h,

8 pass 720*2400 DPI 9m²/h.

Color Management

ICC Profile

Color

CMYK+CMYK+W+W

Ink supply system

Automatic ink supply, automatic stirring and circulation of white ink, and low ink level alarm system for all colors.

Printing Media

PET film

Ink Type

Water-based pigment ink

Maintenance System

Print Head Automatic Cleaning,

Scrapping Ink,Moisturizing,

RIP Software

(RIIN Standard) PP

Operating Environment Temperature

18-30°C

Operating Environment Humidity

35-65%

Printer Dimensions

1570*800*1370 mm

Machine Packaging Dimensions and Weight

1620*970*740 mm = 1.16 m³

Product Net Weight

160 kg

Product Gross Weight

205 kg

Image Formats

JPG, TIFF, PDF, etc.

Operating System

Win7 64-bit / Win10 64-bit CPU:Above i5/i7 Gigabit LAN


Product Features

1. Automatic feeding and receiving system

2. Emergency stop switch

3. Large pressure rollers ensure more precise feeding

4. Automatic ink supply, white ink circulation and stirring, and low ink alarm

5. Independent front and rear heating




Working Together to Build a New Future for the Industry.

Joyinjet-Printer: The Wise Choice for Startups.

DTF printers are currently the most widely used personalized garment printing equipment, capable of both single-piece customization and mass production. Crucially, this equipment meets national environmental standards, effectively avoiding waste emissions. Currently, our DTF garment printing equipment has been exported to many countries and regions, including Europe.
