UJF-3042 MK II E

UJF-3042 MK II E

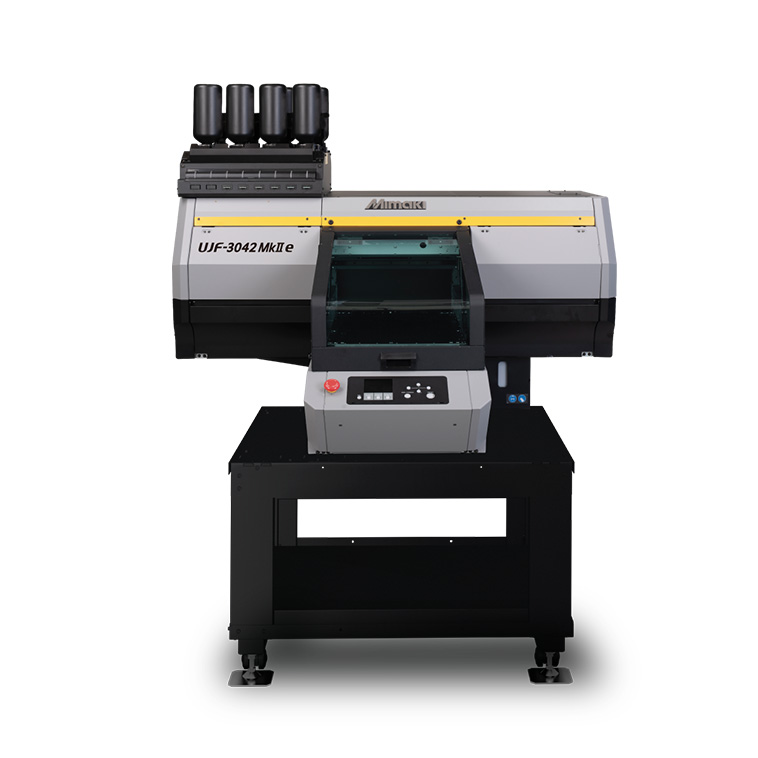

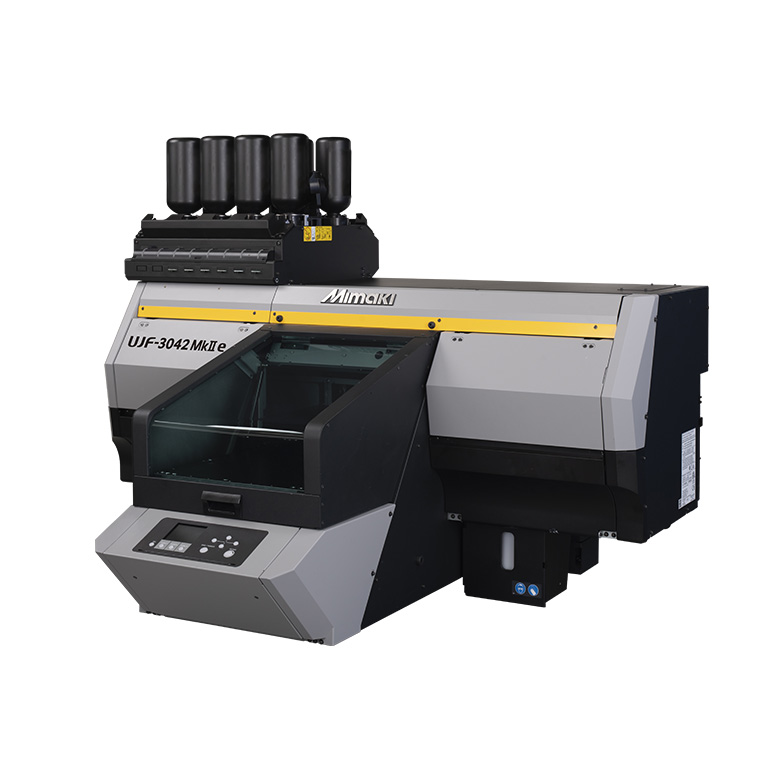

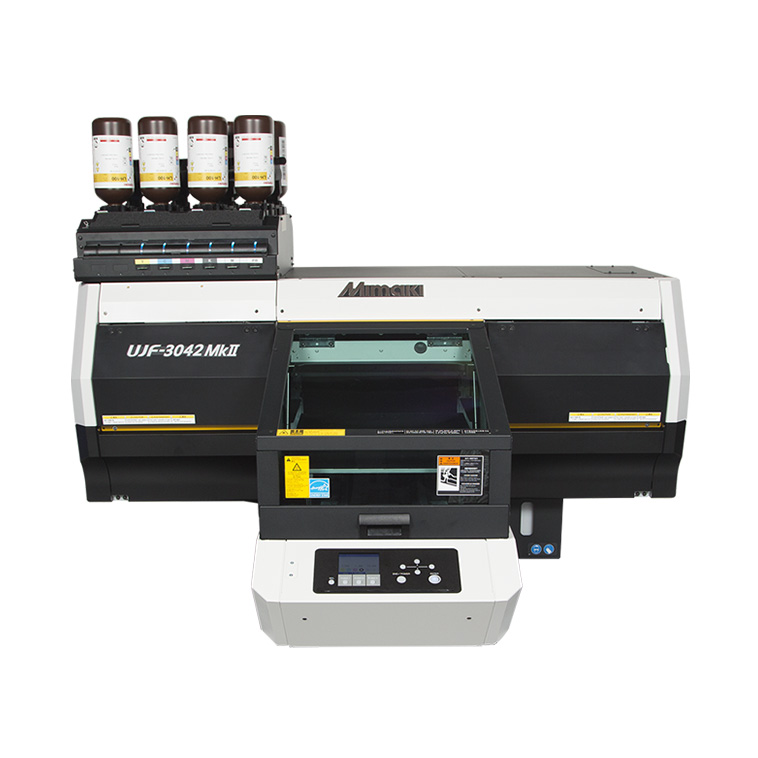

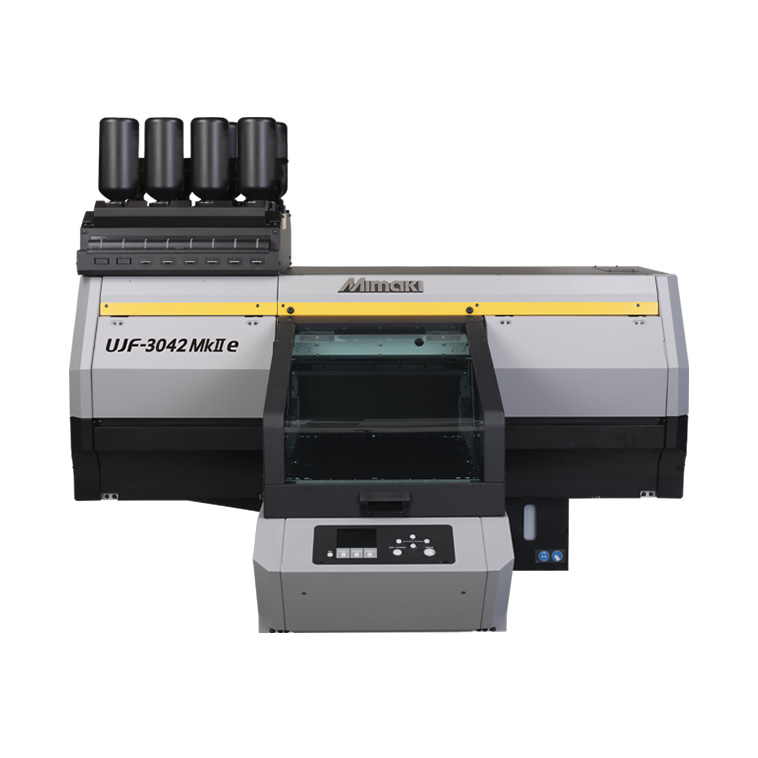

The new UJF-3042MkII e is an upgraded version of the UJF-3042MkII.
Supports A3 paper size and a height of 153 mm. The UJF-3042MkII e is a flatbed UV inkjet printer that further enhances image quality and machine stability while maintaining the well-received operability of the existing model.
REQUEST A QUOTE
SEND EMAIL

Customized to Your Needs, All-Round Coverage

We are dedicated to meeting your personalized printing needs.

From creative conception to finished product delivery, we offer a one-stop inkjet printing end-to-end solution, covering DTF printers, UV flatbed printers, UV roll-to-roll printers, Eco Solvent printers, UV DTF printers, paper printers, lettering machines, as well as matching consumables and dedicated accessories, fully adapting to diverse printing scenarios.

Product Overview

The new UJF-3042MkII e is an upgraded version of the UJF-3042MkII.

Supports A3 paper size and a height of 153 mm. The UJF-3042MkII e is a flatbed UV inkjet printer that further enhances image quality and machine stability while maintaining the well-received operability of the existing model.

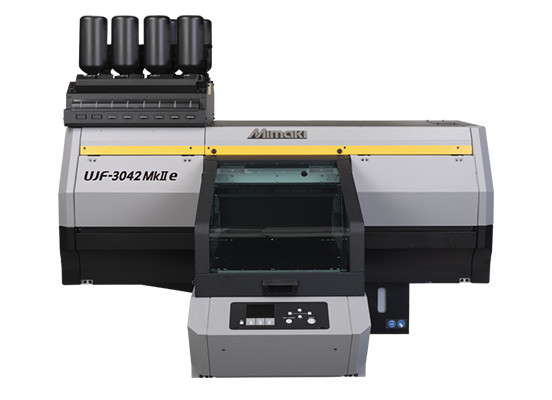

UJF-3042-MK-II-E-6


Product Specifications

Print Head

On-demand Piezoelectric Print Head

Print Resolution

Max 1200 × 1200 dpi

Maximum Printing Area

Width: 300mm, Depth: 420mm (A3 Size)

Ink Type/Color*(1)

LH-100 (C, M, Y, K, W, Cl)LUS-120 (C, M, Y, K, W, Cl)LUS-150 (C, M, Y, K, W)PR-200 (Primer)

Ink Capacity

250 ml/1L (Bottled)

Print Media Thickness

≤ 153mm (6 inches)

Print Media Weight

≤ 5 kg (11 lbs)

Interface

USB2.0/Ethernet

Power Supply

Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz

Power Consumption

≤ 1000W

Operating Temperature

20°C to 30°C (68°F to 86°F)

Operating Humidity

35% to 65% RH (No Condensation)

Guaranteed Temperature Accuracy

20°C to 25°C (68°F to 77°F)

Temperature Gradient

±10°C/h or lower (±50°F/h or lower)

Dust Content

Equivalent to the dust content on the floor of a general office building

RIP Software

RasterLink7 (Standard Software)

External Dimensions (W × D × H)

1355 × 1290 × 856 mm

Equipment Weight

135 kg / 298 lbs


Product Features

1.Supports "MFD2 (Halftone)" for improved image quality.

2.Employs reliable Mimaki technology.

3.Supports "MDL commands" for automation and labor-saving printing processes, such as workpiece transfer.

4."RasterLink7" supports numbering and variable data insertion printing (variable printing function).

5.Optional deodorization device effectively removes odors.
