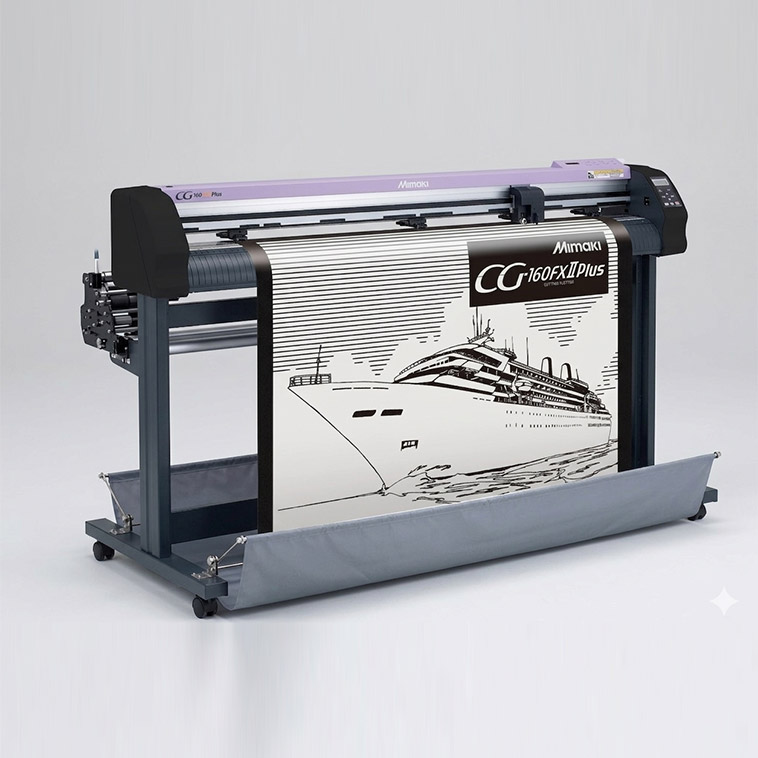

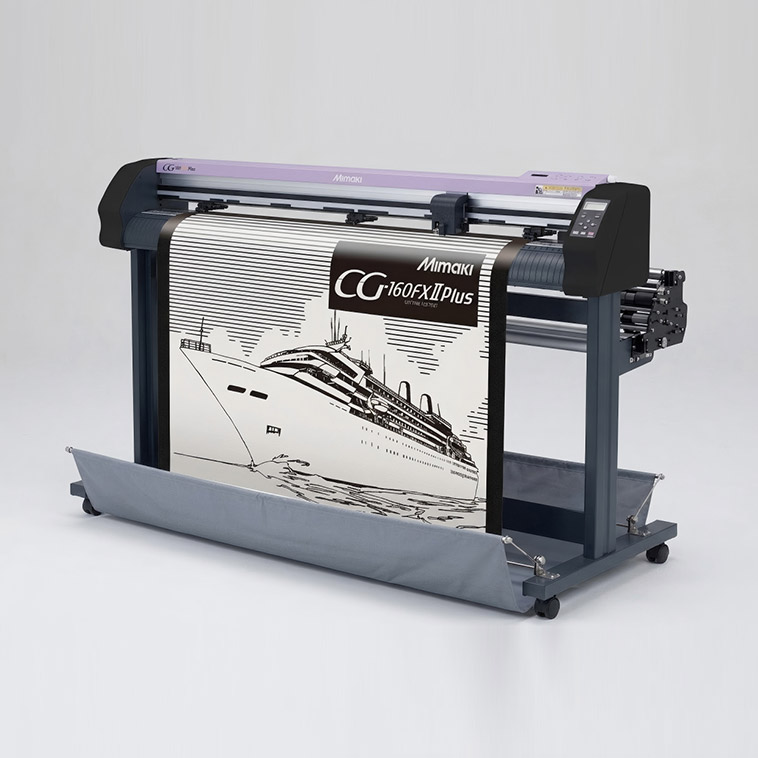

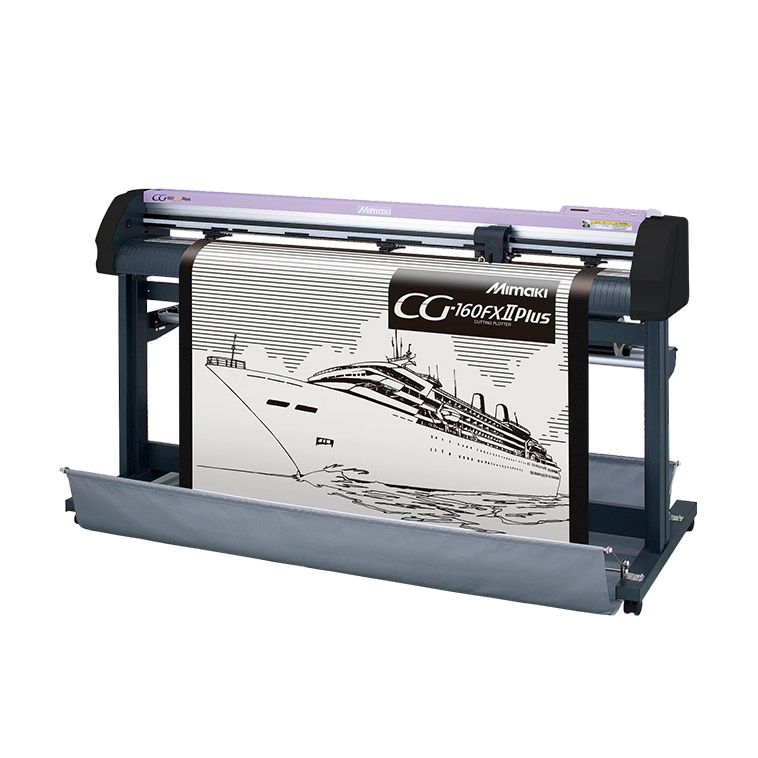

CG-160 FX II PIUS

  • CG-160 FX II PIUS
  • CG-160 FX II PIUS
  • CG-160 FX II PIUS

CG-160 FX II PIUS
Introducing the Mimaki CG-FXII Plus Series, the new world standard of multi-cutting plotters designed to revolutionize your workflow with unmatched efficiency and precision. Available in three versatile models (CG-75FXII Plus, CG-130FXII Plus, CG-160FXII Plus), this series integrates the innovative ID Cut function, enabling seamless unmanned continuous cutting operations when paired with Mimaki JV300-130/160 Plus printers—perfect for small-quantity, multi-product sticker and label orders, as well as vehicle wrapping films.
REQUEST A QUOTE
SEND EMAIL

Customized to Your Needs, All-Round Coverage

We are dedicated to meeting your personalized printing needs.

From creative conception to finished product delivery, we offer a one-stop inkjet printing end-to-end solution, covering DTF printers, UV flatbed printers, UV roll-to-roll printers, Eco Solvent printers, UV DTF printers, paper printers, lettering machines, as well as matching consumables and dedicated accessories, fully adapting to diverse printing scenarios.

Product Overview

Introducing the Mimaki CG-FXII Plus Series, the new world standard of multi-cutting plotters designed to revolutionize your workflow with unmatched efficiency and precision. Available in three versatile models (CG-75FXII Plus, CG-130FXII Plus, CG-160FXII Plus), this series integrates the innovative ID Cut function, enabling seamless unmanned continuous cutting operations when paired with Mimaki JV300-130/160 Plus printers—perfect for small-quantity, multi-product sticker and label orders, as well as vehicle wrapping films.

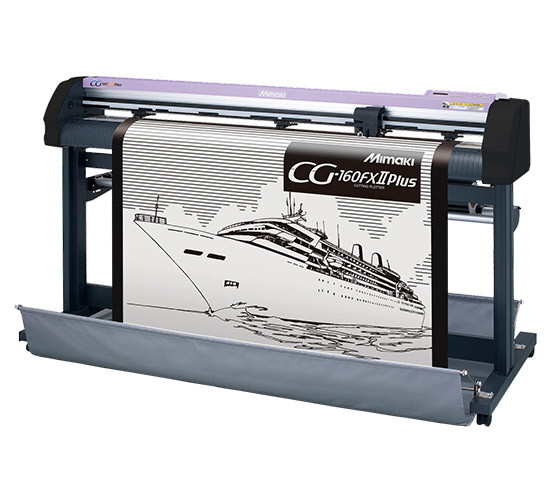

CG-160-FX-II-PIUS-10


Product Specifications

Item

CG-75FXⅡ Plus

CG-130FXⅡI Plus

CG-160FXⅡ Plus

Acceptable sheetsize

width

90-1,040   mm(3.54-40.9")

90-1,580mm(3.54-62.0”)

90-1,880 mm(3.54-74.0")


Roll weight

18kg(39.7 lb)or less

22kg(48.5)or less


Roll dia

200mm(7.87)or less

Effective cutting area

760 mm×51 m(29.9”×167')

1,300 mm×51 m(51.2”×167')

1,600 mm×51 m(63.0”x167')

Max.auto cutting area

870 mm(34.3”)

1,425 mm(56.1")

1,720 mm(67.7")

Max.speed

140cm/s (In a 45°direction and in a pen-up state)

Adjustable speed range(cutting /plotting)※3

1-10 cm/s(1 cm/s step),10-50 cm/s (5 cm/s step)50-100 cm/s(10 cm/s step)

Mechanical resolution

5μm(0.0002”)

Command resolution

25μm,10μm(MGL-Ilc),100 μm,50 μm(MGL-Ic1)

Repeatability

±0.2mm(0.0079”)


Excluding shrinkage/expansion caused by the film temperature

Accuracy assurance range

760    mm×10m29.9”x0.39”

1,300    mm×10m51.2“x0.39”

1,600 mm×10 m63.0”x0.39”


Depending on the specified film and cutting conditions

Max.pressure

500g

Pressure setting

Cutter

10-20g(2g step),20-100g(5g step),100-500g(10g step)


Pin

10-20g(2g step),20-100g(5g step),100-500g(10g step)


Pen

10-20g(2g step),20-100g(5g step),100-150g(10g step)

Acceptable cutting sheet※4

Vinyl up to 0.25mm(0.01”)thickness,Fluorescent sheet,Reflective sheet

Acceptable sheet for pouncing※5

Paper thickness 0.06-0.13mm(0.0024"-0.005")

Applicable tools※6

Cutter,Water based ball-point pen,Oil based ball-point

Certifications

VCCI class A,FCC class A,IEC 62368-1 ETL,CE Marking(EMC,Low voltage and Machinery directive)CB,RoHS,REACH,Energy star,RCM

Type of command

MGL-lc/lc1

Interface

RS-232C/USB

Receiver buffer size

30Mb standard(20Mb when in sorting)

Operation environment

Temperature:5-35 degrees Humidity:35-75%(Rh)Non-condensationAC100V-240V 1A 50/60Hz

Power

AC100V-240V   1A   50/60Hz

Power consumption

100W or less

Dimensions(WxDxH)

1,285×700×1,217 mm50.5×27.5×47.9”

1,825×700×1,217 mm71.8×27.5×47.9”

2,125×700×1,217 mm83.6×27.5×47.9”

Weight

47 kg(104 Ib)

62 kg(137 Ib)

70kg(154 Ib)


Product Features

1. Selectable clamp pressure with high and low setting ensures accurate cutting of various media.

2. Selectable three jog speeds ensure proper and easy positioning of the head to the point.

3. Over-cut function makes the starting and ending points overlapped, which eliminates uncut portion of the media.

4. Media can be loaded from back or front.

5. Up to 6 roll media can be set at a time(1 set standard).

6. Plug-in cutting software for CorelDRAW and Illustrator is included.

7. A special adaptor to use commercially available pens and USB interface are included.
