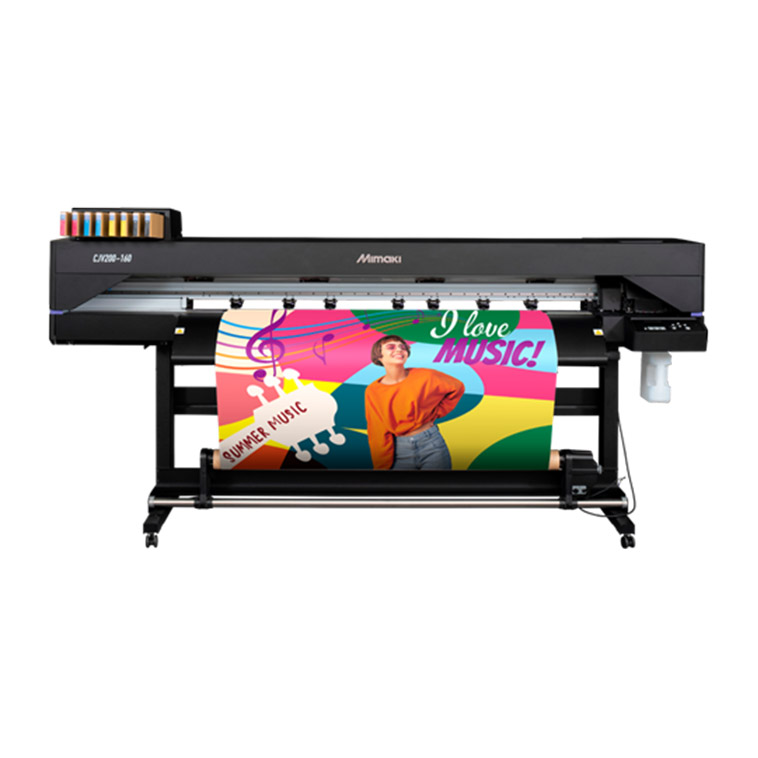

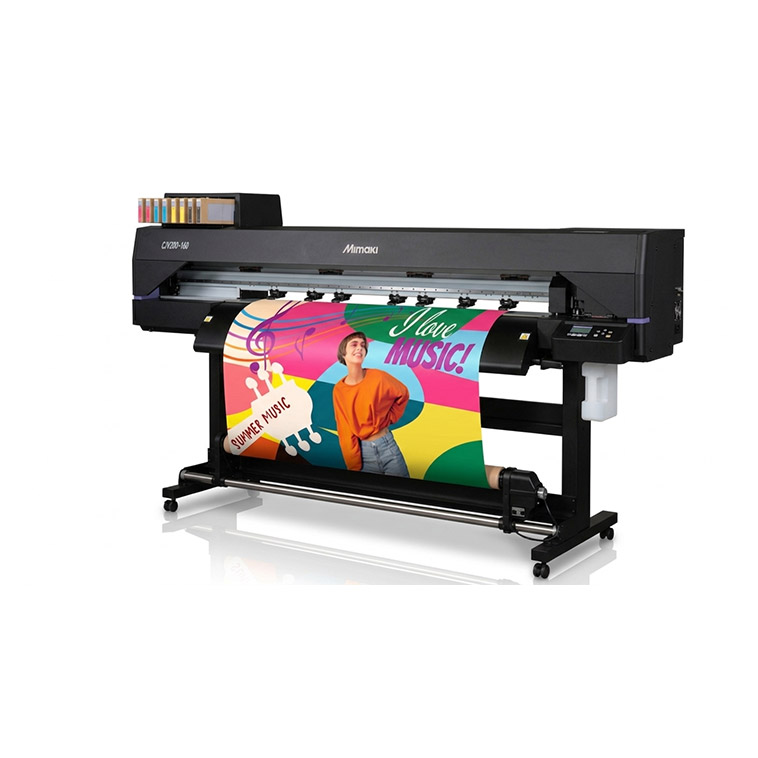

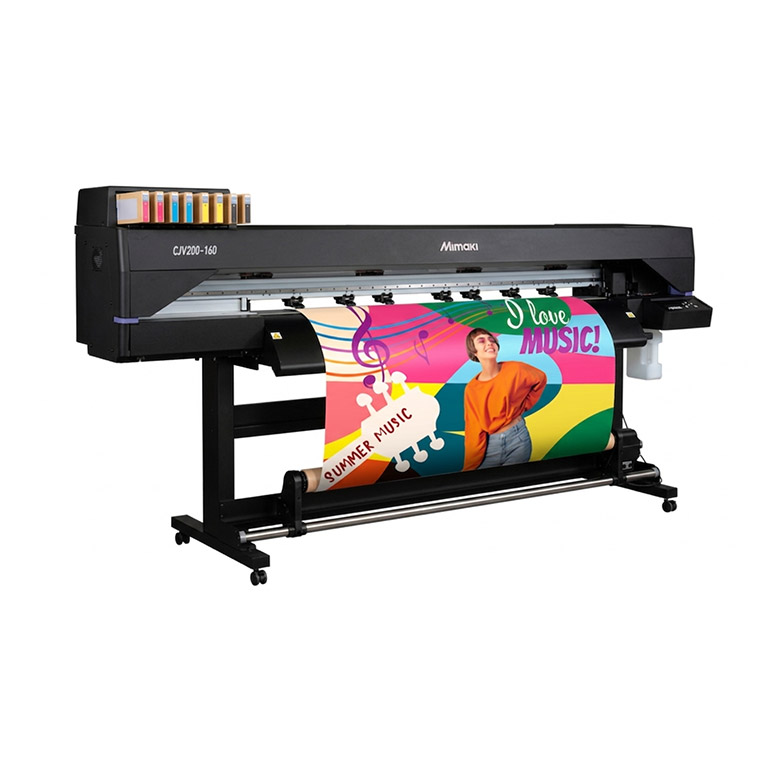

CJV 200-160

CJV 200-160
The CJV200 is equipped with a single print head of "330 Engine" in Mimaki's flagship printer. The technology of precise control of a minimum 3pl ink drop and the print head that delivers high-density prints, even at high speeds, resulting in overwhelmingly beautiful printing.
REQUEST A QUOTE
SEND EMAIL

Customized to Your Needs, All-Round Coverage

We are dedicated to meeting your personalized printing needs.

From creative conception to finished product delivery, we offer a one-stop inkjet printing end-to-end solution, covering DTF printers, UV flatbed printers, UV roll-to-roll printers, Eco Solvent printers, UV DTF printers, paper printers, lettering machines, as well as matching consumables and dedicated accessories, fully adapting to diverse printing scenarios.

Product Overview

The CJV200 is equipped with a single print head of "330 Engine" in Mimaki's flagship printer. The technology of precise control of a minimum 3pl ink drop and the print head that delivers high-density prints, even at high speeds, resulting in overwhelmingly beautiful printing.

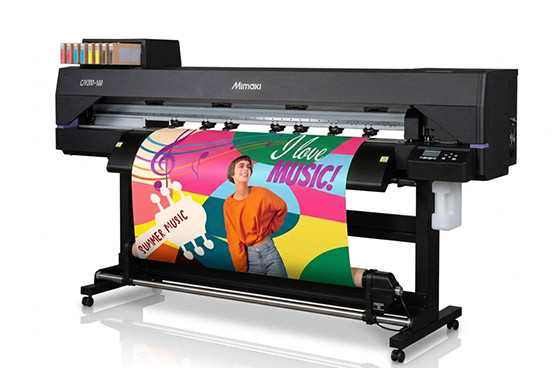

CJV-200-160-5


Product Specifications

Print head

On-demand piezo head

Print resolution

600dpi, 900dpi, 1200dpi

Print gap

By manual 2 levels (1.5/2.0 mm)

Ink Type/Color

Eco-solvent inkSS22 (C, M, Y, K, Lc, Lm, Lk, Or)SS21 (C, M, Y, K, Lc, Lm, Lk, Or)BS4 (C, M, Y, K) *Only available in specific countries

Ink Capacity

SS22: 440ml Ink cartridge / 1L Ink packSS21: 440ml Ink cartridge / 2L Ink packBS4: 600ml Ink pack *2 / 2L Ink pack

Maximum print width

1,610 mm (63.4")

Media Maximum width

1,620 mm (63.8")

Media Thickness

1.0 mm or lower

Media Roll diameter

φ180 mm or less

Media Roll weight

25 kg (55.1 lb) or less [45 kg (99.2 lb) or less with option *3]

Media Roll inside diameter

2 inch / 3 inch

Cutting function Cutting speed

Max. 300 mm/s

Cutting function Acceleration

Max. 0.5G

Cutting function Cutting pressure

10 - 450 gf

Cutting function Cutter response times

10 times/sec

Cutting function Repeatability

±0.2 mm (Excluding shrinkage / expansion caused by the film temperature)

Interface

Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed

Certifications

VCCI class A, FCC class A, ETL IEC 62368-1,CE Marking (EMC, Low voltage, Machinery directive, and RoHS),CB, Energy Star, RCM, KC

Power supply

Single-phase (AC 100–120V/200–240V)×2 50/60Hz±1Hz

Power consumption

Max. 1,320 W × 2 or less / Min. 4.5 W or less (Sleep mode)

Operational environment Temperature

20–30 °C (68–86 °F)

Operational environment Humidity

35–65% Rh (Non condensing)

Operational environment Recommended temperature

20–25 °C (68–77 °F)

Operational environment Dust level

General office level

Dimensions (W×D×H)

2,770 × 748 × 1,370 mm (109.1 × 29.4 × 53.9")

Weight

140 kg (308.6 lb)


Product Features

Beautiful printing. Mimaki's flag-ship printer's "330 Engine" a single print head is mounted to achieve high image quality.

Reliable even during busy periods. Highest practical print speed at entry level: 17.0 m²/h

Simple design that is easy for anyone to use. Easy to work with, easy to check, and easy to maintain.

Compatible with our new ink "SS22," which reduces odor by approximately 40% and does not contain GBL, the use of which has been increasingly regulated around the world in recent years. The industry-leading outdoor weather resistance keeps printed materials vividly colored, while taking operators and the global environment into consideration.

What can an Eco Solvent printer do?

Instantly bring your creativity to life.

Eco Solvent printers have a wide range of applications, covering advertising production, commercial promotion, interior design, and many other mainstream fields. They are core equipment for graphic printing and image production.
