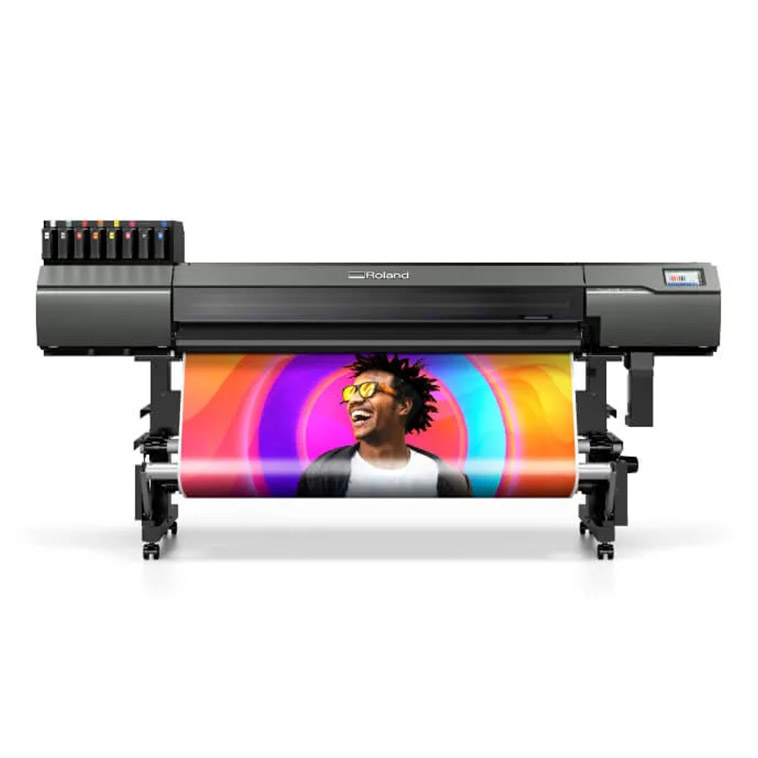

LG-640

LG-640
The LG-640 represents the most advanced generation of TrueVIS technology, engineered to deliver high-definition UV-LED output with professional-grade efficiency. It is the ultimate platform for expanded print expression, perfect for labels, packaging, and high-end graphics.
REQUEST A QUOTE
SEND EMAIL

Customized to Your Needs, All-Round Coverage

We are dedicated to meeting your personalized printing needs.

From creative conception to finished product delivery, we offer a one-stop inkjet printing end-to-end solution, covering DTF printers, UV flatbed printers, UV roll-to-roll printers, Eco Solvent printers, UV DTF printers, paper printers, lettering machines, as well as matching consumables and dedicated accessories, fully adapting to diverse printing scenarios.

Product Overview

The LG-640 represents the most advanced generation of TrueVIS technology, engineered to deliver high-definition UV-LED output with professional-grade efficiency. It is the ultimate platform for expanded print expression, perfect for labels, packaging, and high-end graphics.

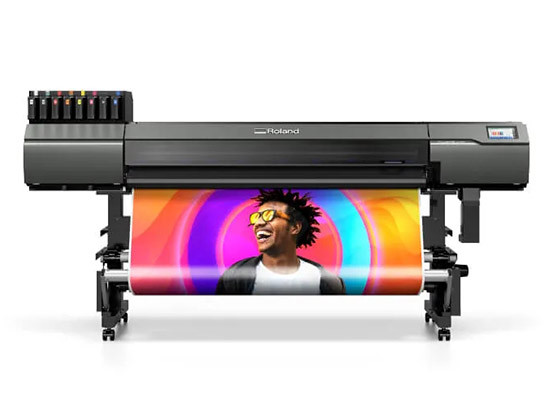

LG-640-2

Product Specifications



LG-640LG-300
Size64 inch30 inch
Dimension114.3×29.5×55.6  in.80.3×29.5×55.6  in.
(2,902×748×1,412  mm)(2,038×748×1,412  mm)

Width13.2 to 64 in. (335 to 1,625mm)7.2 to 30 in. (182 to 762mm)

ThicknessMax39.3 mil(1.0mm)with liner,for printing
Max 15.7 mil(0.4 mm)with liner and 8.6 mil(0.22mm)without liner,for cutting
MediaRollouter diameterMax9.8 in. (250 mm)
Roll weightMax99 Ib. (45 kg)Max66 Ib. (30 kg)
Core diameter3 in. (76.2 mm)or 2 in. (50.8mm)
InkColorsEight colors(Cyan,Magenta,Yellow,Black,Orange,Red,White,Gloss)
                         and Primer
Capacity750mL pouch (ECO-UV)
Configurations  CMYKGIPrWhRe
  CMYKPrWhReOr
  CMYKGIWhReOr
  CMYKWhReOr
  CMYKGIPrWh
    CMYKGIWh
      CMYK
Control Panel7in.touchscreen display
ResolutionMax1,200 dpi
RIP(included)VersaWorks
CuttingCut pressure500 gf
Cut speed0.39 to 11.8 in./s(10 to 300 mm/s)


Product Features

Unmatched Color Accuracy: Features staggered print heads and ECO-UV inks combined with the True Rich Color 3 preset for vivid, brand-accurate results.

Expanded Gamut: Leverage available Orange and Red ink configurations to push the boundaries of digital color and reach new levels of vibrancy.

Premium Special Effects: Incorporate Gloss, High-Opacity White, and Primer to create high-end textures, 3D effects, and stunning window graphics with economical ink usage.

Intuitive Operation: Includes an easy-to-operate 7" LCD touchscreen control panel for seamless job management and status monitoring.

Streamlined Workflow: Automated media calibration and a one-touch media clasp allow for fast, single-operator loading and reduced material waste.

Built for Reliability: A redesigned chassis and adjustable take-up unit support heavy rolls and long-run unattended printing for maximum productivity.
