TS 100-1600

  • TS 100-1600

TS 100-1600

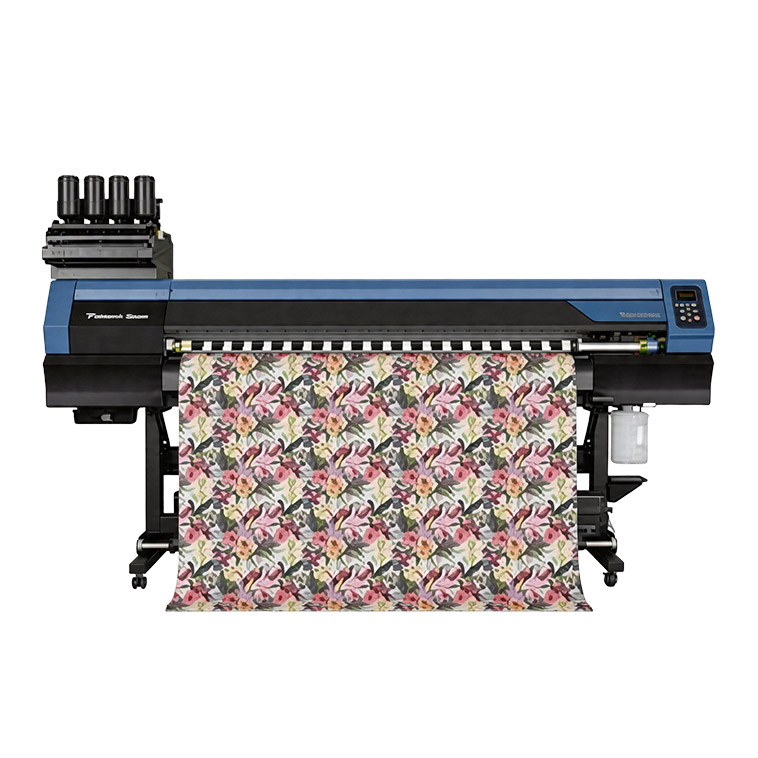

The Mimaki TX100-1600 EX (TS100-1600 upgraded) is a high-performance 1.6m entry-level dye sublimation transfer inkjet printer engineered for the textile and apparel industry, delivering an unbeatable balance of blazing-fast print speed, premium image quality, and cost-effectiveness. As a core model in Mimaki’s 100 Series, it achieves up to 70㎡/h print speed—nearly double that of conventional Mimaki textile printers—making it the ideal workhorse for on-demand production of fashion apparel, sportswear, team uniforms, soft signage, and custom polyester textiles.
REQUEST A QUOTE
SEND EMAIL

Customized to Your Needs, All-Round Coverage

We are dedicated to meeting your personalized printing needs.

From creative conception to finished product delivery, we offer a one-stop inkjet printing end-to-end solution, covering DTF printers, UV flatbed printers, UV roll-to-roll printers, Eco Solvent printers, UV DTF printers, paper printers, lettering machines, as well as matching consumables and dedicated accessories, fully adapting to diverse printing scenarios.

Product Overview

The Mimaki TX100-1600 EX (TS100-1600 upgraded) is a high-performance 1.6m entry-level dye sublimation transfer inkjet printer engineered for the textile and apparel industry, delivering an unbeatable balance of blazing-fast print speed, premium image quality, and cost-effectiveness. As a core model in Mimaki’s 100 Series, it achieves up to 70㎡/h print speed—nearly double that of conventional Mimaki textile printers—making it the ideal workhorse for on-demand production of fashion apparel, sportswear, team uniforms, soft signage, and custom polyester textiles.

Equipped with 2 staggered on-demand piezo print heads and 3-step variable droplet technology (5/13/19pl), this printer produces grainless, high-definition prints with rich tonal ranges and fine details, while Mimaki’s industry-leading core technologies (MAPS4, NCU/NRS, DAS) ensure stable, error-free operation with minimal downtime. It uses ECO PASSPORT certified SB610 dye sublimation inks in 1000ml large-capacity bottles, delivering vivid, colorfast output on polyester materials with excellent printing stability for continuous or unattended operation.

With selectable RIP software (RasterLink7/TxLink4), global power compatibility, and Ethernet/USB connectivity, the TX100-1600 EX is a versatile, user-friendly solution for small to medium textile businesses, enabling streamlined production, reduced inventory, and focus on high-value-added textile jobs—all at an affordable entry-level price point.

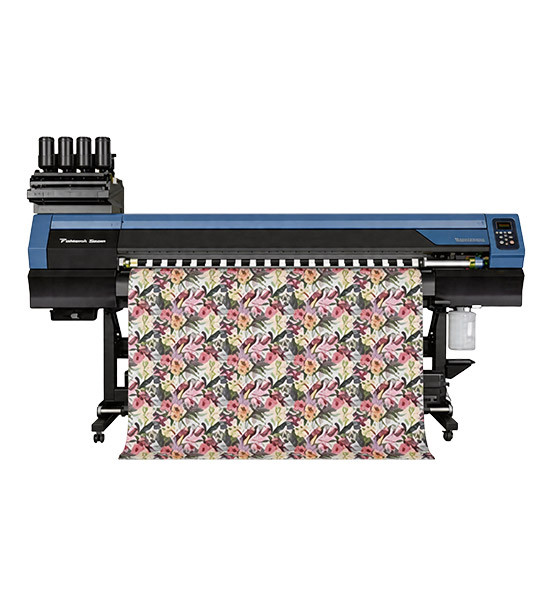

TS-100-1600-10


Product Features

Double the Speed, Maximize Productivity

· Achieve a maximum print speed of 70㎡/h (Super Draft mode), nearly double that of Mimaki’s conventional textile printers (JV150-160/TS30-1300).

· On-demand production capability eliminates unnecessary inventory, simplifies production management, and shortens order turnaround time.

· 3-step variable droplet technology (5/13/19pl) enables high-quality prints with rich tonal ranges and reduced granularity—no compromise on speed or quality.

Premium Print Quality, Stable & Consistent

· MAPS4 (Mimaki Advanced Pass System): Reduces banding and color unevenness at print pass boundaries, maintaining smooth, uniform output for all textile jobs.

· NCU/NRS (Nozzle Check/Recovery System)

·  Automatically detects missing nozzles, performs self-cleaning, and replaces defective nozzles with alternate ones—uninterrupted printing without manual intervention.

· DAS (Dot Adjustment System)

· Auto-calibrates ink dot position and media feeding amount after media/setting changes, eliminating operator adjustment variation and labor-intensive calibration.

· 4-color (CMYK) high-density SB610 inks deliver vivid colors and high color reproducibility, perfect for fashion clothing, sportswear, and soft signage.

Eco-Certified Inks, Safe & Reliable

· Uses Mimaki genuine SB610 dye sublimation inks with OEKO-TEX ECO PASSPORT certification, dedicated to environmental and production site safety.

· 1000ml large-capacity ink bottles reduce refill downtime and lower per-print ink costs, ideal for high-volume production.

· Excellent ink stability for continuous discharging and unattended operation—stress-free output for long production runs.

Flexible RIP Software, User-Friendly Operation

· Two selectable RIP software options: Professional RasterLink7 (16-bit rendering, 25% faster PDF RIP processing, parallel RIP for 8 jobs) or entry-level TxLink4 (simple operation for basic textile jobs).

· Variable print/color replacement function: Customize ink amount and Lab values for ideal color matching, perfect for personalized textile production (team wear, branded apparel).

What can a paper printer do?

Creative and efficient output

Paper printers have a wide range of applications, adapting to the paper printing needs of various industries such as processing and manufacturing, advertising printing, bag customization, handicraft processing, toy accessories, decorative painting, packaging box printing, sign making, and DIY cosmetic packaging.

Service Support

Leveraging deep collaborations with globally renowned printhead manufacturers and software vendors, we integrate cutting-edge and practical technologies into our fabric printing equipment, providing customers with comprehensive and professional technical services and support.

  • 01

    Complete Machine Warranty Service

  • 02

    Installation Guidance Service

  • 03

    Troubleshooting Support

  • 04

    Remote Technical Assistance
