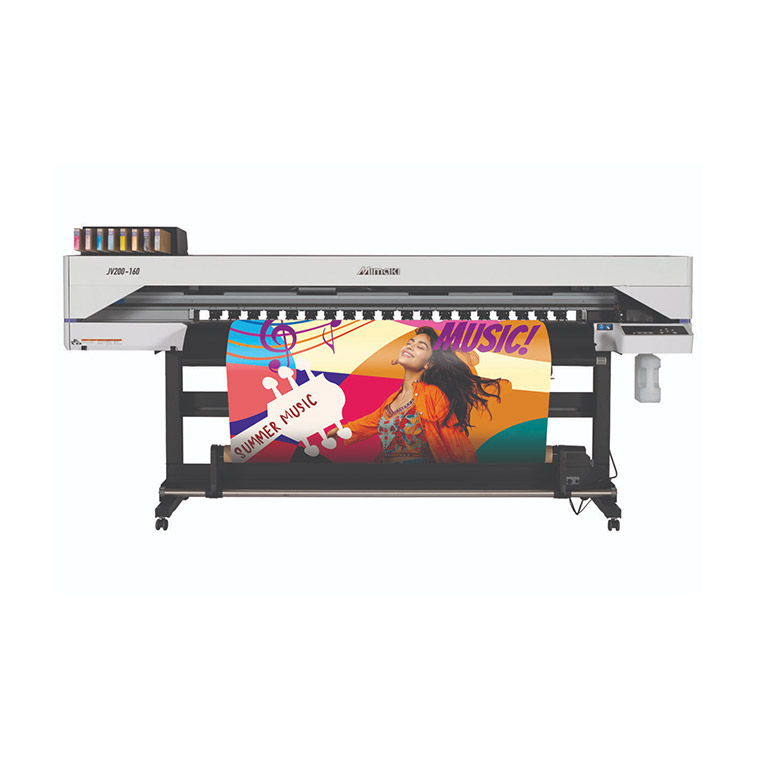

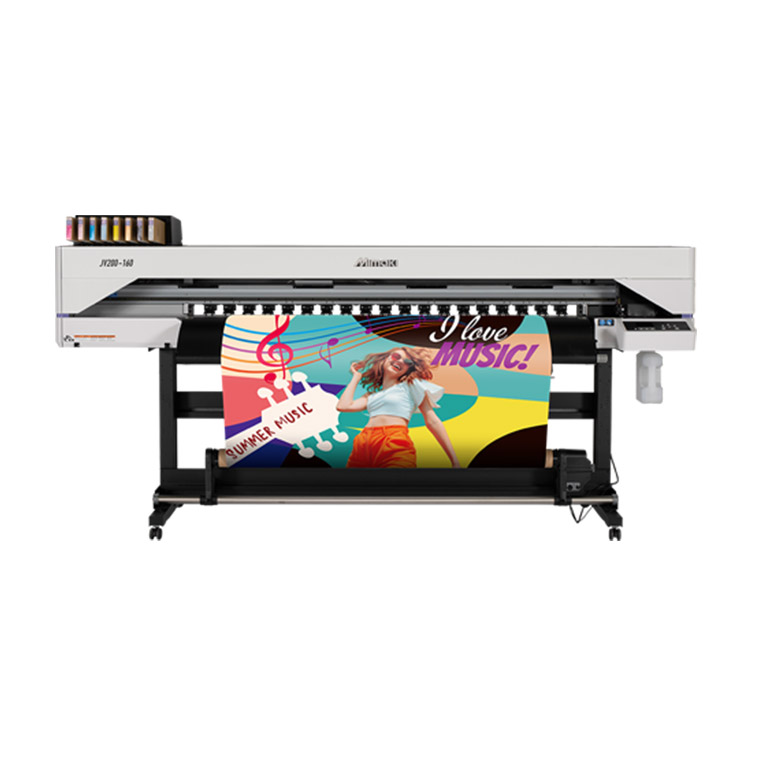

JV 200-160

JV 200-160
"JV200 Series" is a Roll to Roll eco-solvent inkjet printer which equipped with a single print head of "330 Engine" in our flag-ship printer, enabling even inexperienced operators to produce printed products beautifully, quickly, and easily.
REQUEST A QUOTE
SEND EMAIL

Customized to Your Needs, All-Round Coverage

We are dedicated to meeting your personalized printing needs.

From creative conception to finished product delivery, we offer a one-stop inkjet printing end-to-end solution, covering DTF printers, UV flatbed printers, UV roll-to-roll printers, Eco Solvent printers, UV DTF printers, paper printers, lettering machines, as well as matching consumables and dedicated accessories, fully adapting to diverse printing scenarios.

Product Overview

Beautiful printing. Mimaki's flag-ship printer's "330 Engine" a single print head is mounted to achieve high image quality.

Reliable even during busy periods. Highest practical print speed at entry level: 17.0 m²/h

Simple design that is easy for anyone to use. Easy to work with, easy to check, and easy to maintain.

Compatible with our new ink "SS22," which reduces odor by approximately 40%*1 and does not contain GBL*2, the use of which has been increasingly regulated around the world in recent years. The industry-leading outdoor weather resistance keeps printed materials vividly colored, while taking operators and the global environment into consideration.

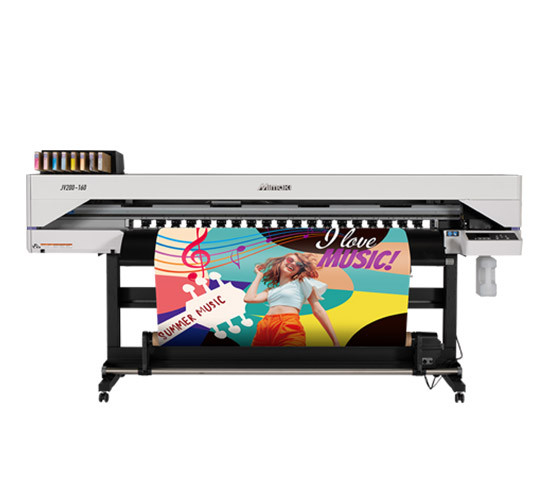

JV-200-160-3


Product Specifications


JV200-130JV200-160
Print headOn-demand piezo print head
Print resolution600dpi, 900dpi, 1200dpi
Print gapBy manual 2 levels (1.5/2.0 mm)
InkType/ColorEco-solvent ink
SS22 (C,M,Y,K,Lc,Lm,Lk,Or)
SS21 (C,M,Y,K,Lc,Lm,Lk,Or)
BS4 (C,M,Y,K) *1
Capacity *2SS22:440ml Ink cartridge / 1L Ink pack
SS21: 440ml Ink cartridge / 2L Ink pack
BS4: 600ml Ink pack *3 / 2L Ink pack
Maximum print width1,361mm (53.6")1,610mm (63.4")
MediaMaximum width1,371mm (54.0")1,620mm (63.8")
Thickness1.0 mm or lower
Roll diameterφ180 mm or less
Roll weight25 kg (55.1lb) or less [45 kg (99.2 lb) or less with option *4]
Roll inside diameter2 inch / 3 inch
InterfaceEthernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed
CertificationsVCCI class A, FCC class A, ETL IEC 62368-1,
CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
CB, Energy Star, RCM, KC
Power supplySingle-phase (AC 100–120V/200–240V)×2 50/60Hz±1Hz
Power consumptionMax. 1,320 W x 2 or less / Min. 4.5 W or less (Sleep mode)
Operational environmentTemperature: 20–30 °C (68–86 °F)
Relative humidity: 35–65% Rh (Non condensing)
Recommended temperature: 20–25 °C (68–77 °F)
Dust level: General office level
Dimensions (W×D×H)2,520 x 748 x 1,370 mm (99.2 x 29.4 x 53.9")2,770 x 748 x 1,370 mm (109.0 x 29.4 x 53.9")
Weight130 kg (286.6 lb)140 kg (308.6 lb)


Product Features

Overwhelming Beauty

The JV200 is equipped with a single print head of "330 Engine" in Mimaki's flagship printer. The technology of precise control of a minimum 3pl ink drop and the print head that delivers high-density prints, even at high speeds, resulting in overwhelmingly beautiful printing.

Easy for Everyone

Simple Design

Single Print Head for Simple Maintenance

Single print head system contributes less cleaning time and adjustment time. The simple design allows you to work quickly and easily.

Wide Open Cover for Easy Access

Up-Facing Control Panel for Easy Operation

Easy and Precise Automatic Set Up

Automatically performs necessary adjustment at the media setup to ensure optimal image quality at all times.
(DAS | Dot Adjustment System)

Ink Saving Function: Reduce Ink Consumption with Just 2 Clicks

Anyone can easily reduce ink consumption without technical expertise.
This function is available with any substrates and profiles.

Simple Design Software "Simple Create"

Simple Create is software that allows you to create labels, POP, stickers, and other designs without a need of DTP software.
It provides simple tools for creating designs and cutlines, as well as direct output from the software.

What can an Eco Solvent printer do?

Instantly bring your creativity to life.

Eco Solvent printers have a wide range of applications, covering advertising production, commercial promotion, interior design, and many other mainstream fields. They are core equipment for graphic printing and image production.

Service Support

Leveraging deep collaborations with globally renowned printhead manufacturers and software vendors, we integrate cutting-edge and practical technologies into our fabric printing equipment, providing customers with comprehensive and professional technical services and support.

  • 01

    Complete Machine Warranty Service

  • 02

    Installation Guidance Service

  • 03

    Troubleshooting Support

  • 04

    Remote Technical Assistance
